Product Description

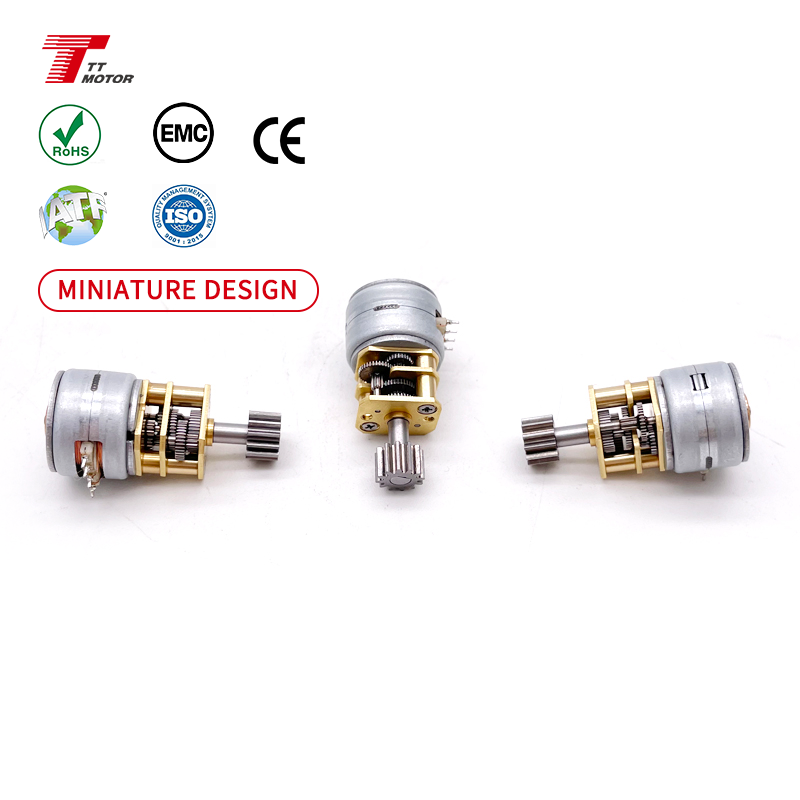

GM12-15BY 15mm DC Gear Motor 5V

Main Features

12*10mm gearbox plus 15mm dc gear motor 5v
Small size dc gear motor with low speed and big torque
12mm gear motor provide 0.05Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Reduction ratio: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380

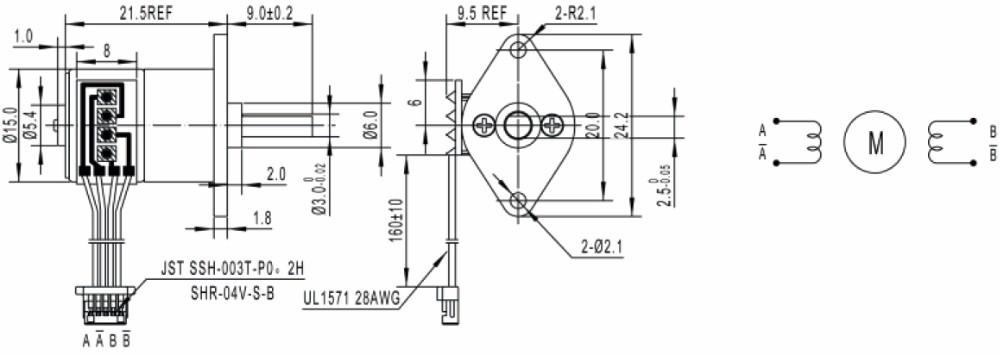

Technical Specifications

Model	Rated Voltage	Resistance	No. of Phase	Step Angle	Current	Gear Ratio	Holding Torque	Pull in Rate
GM12-15BY-30	5VDC	10Ω	2	18°	500mA	1/30	500g.cm	800pps
GM12-15BY-50	5VDC	10Ω	2	18°	500mA	1/50	700g.cm	850pps
GM12-15BY-110	5VDC	10Ω	2	18°	500mA	1/110	1050g.cm	850pps

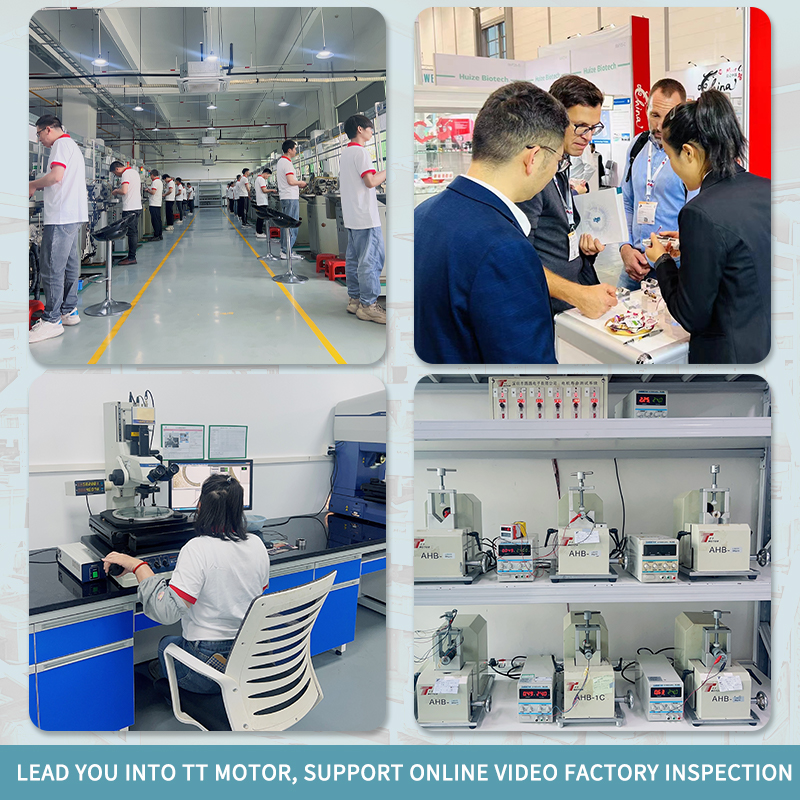

Production & Quality Control

Frequently Asked Questions (FAQ)

Q1: What are the main applications of the GM12-15BY DC gear motor?

A1: This small-sized motor features low speed, low noise, and high torque. It is highly suitable for robotics, electric vehicles, pumps, medical equipment, home appliances, and other automation systems requiring high torque in compact spaces.

Q2: What reduction ratios are available for this motor?

A2: A wide range of reduction ratios is supported, including: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, and 380. Custom gear ratios can be selected based on specific application requirements.

Q3: What is the rated voltage and resistance of the GM12-15BY?

A3: The motor runs on a rated voltage of 5VDC and has a coil resistance of 10Ω.

Q4: How does the holding torque vary across different models of this series?

A4: The holding torque depends on the selected gear ratio. For example, the GM12-15BY-30 provides 500g.cm, the GM12-15BY-50 delivers 700g.cm, and the GM12-15BY-110 offers a holding torque of up to 1050g.cm.

Q5: What are the electrical parameters (step angle, phase, current) for the GM12-15BY series?

A5: The GM12-15BY is a 2-phase stepper motor with an 18° step angle and a rated current of 500mA.

Q6: What certifications do your manufacturing processes follow?

A6: The production and quality control facilities operate under strict compliance and have obtained certifications such as ISO9001:2015 and IATF16949 to ensure premium reliability and product safety.
