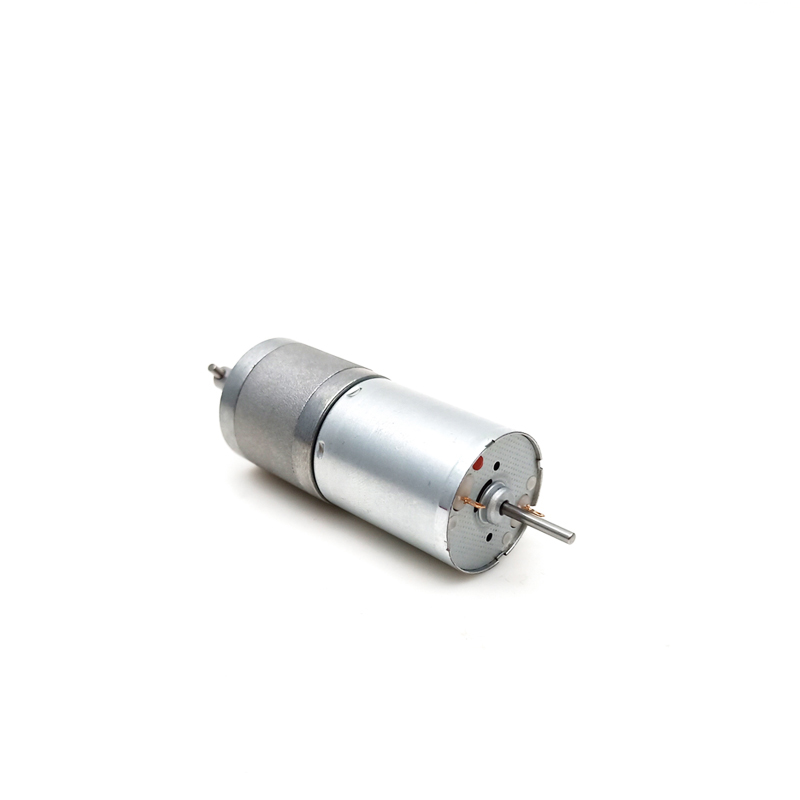

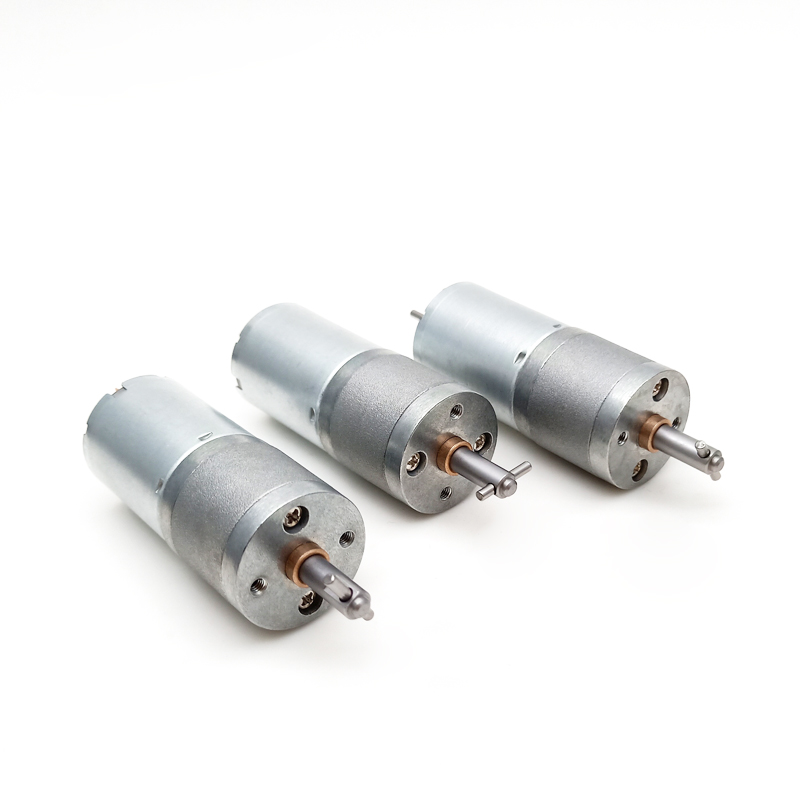

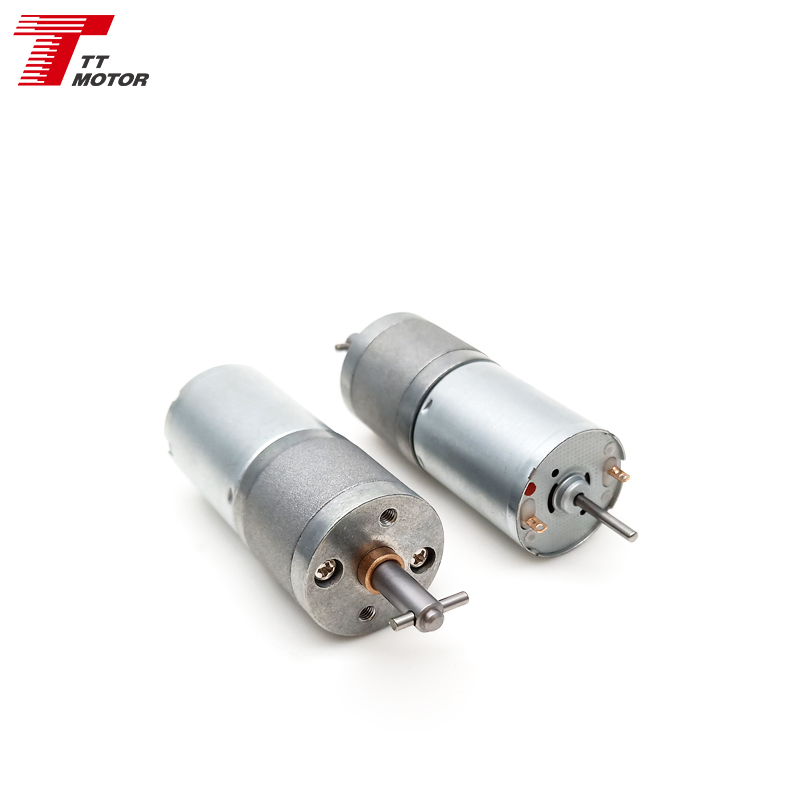

GM25-370CA 6v 12v Dc Electric Gear Motor for TV Broadcast Satellite Antenna

Product Description

GM25-370CA 6v 12v DC Electric Gear Motor for TV Broadcast Satellite Antenna
Product Description
Main Features

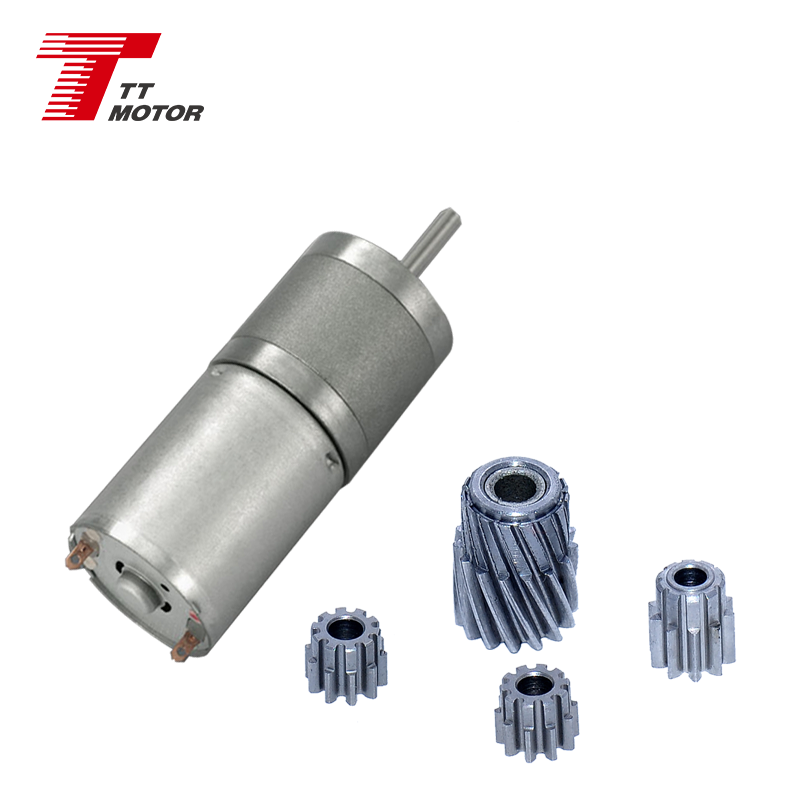

  • 25mm gearbox plus 370 & 320 permanent magnet DC motor
  • Small size dc gear motor with low speed and big torque
  • 25mm gear motor provide 0.5Nm torque and more reliable
  • Suitable to small diameter, low noise and big torque application

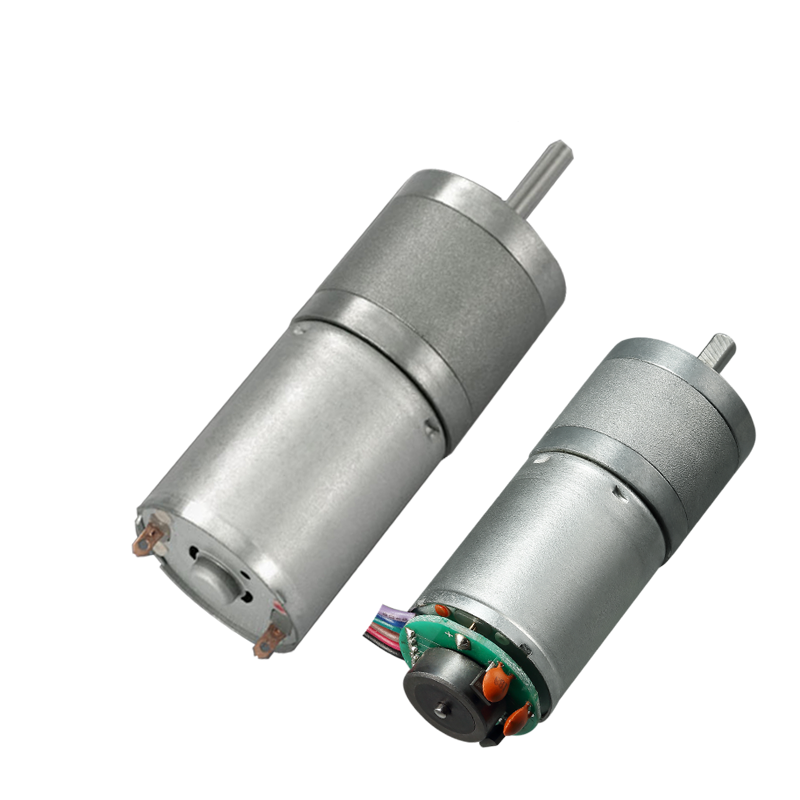

  • DC gear motors can match encoder, 11ppr
  • Reduction ratio: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499
Model Specifications: GM25-370CA
Model Code Rated Voltage No-load Speed No-load Current Rated Speed Rated Torque Rated Current Output Power Stall Torque Stall Current
TRK-370CA-22170 6VDC 5600r/min 50mA 4800r/min 24g.cm 300mA 1.18W 186g.cm 2.1A
TRK-370CA-15360 12VDC 5600r/min 25mA 4800r/min 24g.cm 160mA 1.18W 186g.cm 1.06A
TRK-370CA-12560 12VDC 3700r/min 20mA 3000r/min 20g.cm 90mA 0.62W 125g.cm 0.6A
GM25-370CA-22170-xxx Parameters
Reduction ratio 4 10 21 34 47 78 103 130 227
Length mm 17 19 19 21 21 23 23 25 25
No-load speed rpm 1280 510 245 150 110 68 50 42 24
Rated speed rpm 1200 480 230 137 102 62 47 37 21
Rated torque kg.cm 0.06 0.15 0.3 0.5 0.7 1.1 1.5 1.7 2.7
Max. tolerance torque kg.cm 0.45 1.1 2.3 3.9 5.2 10 10 10 10
GM25-370CA-15360-xxx Parameters
Reduction ratio 4 10 21 34 47 78 103 130 227
Length mm 17 19 19 21 21 23 23 25 25
No-load speed rpm 1280 510 245 150 110 68 50 42 24
Rated speed rpm 1200 480 230 137 102 62 47 37 21
Rated torque kg.cm 0.06 0.15 0.3 0.5 0.7 1.1 1.5 1.7 2.7
Max. tolerance torque kg.cm 0.45 1.1 2.3 3.9 5.2 10 10 10 10
GM25-370CA-12560-xxx Parameters
Reduction ratio 4 10 21 34 47 78 103 130 478
Length mm 17 19 19 21 21 23 23 25 27
No-load speed rpm 850 340 165 100 75 48 34 27 7.5
Rated speed rpm 750 300 145 86 64 38 29 23 6.3
Rated torque kg.cm 0.05 0.12 0.26 0.4 0.6 0.9 1.2 1.4 2.5
Max. tolerance torque kg.cm 0.3 0.75 1.5 2.6 3.5 10 10 10 10

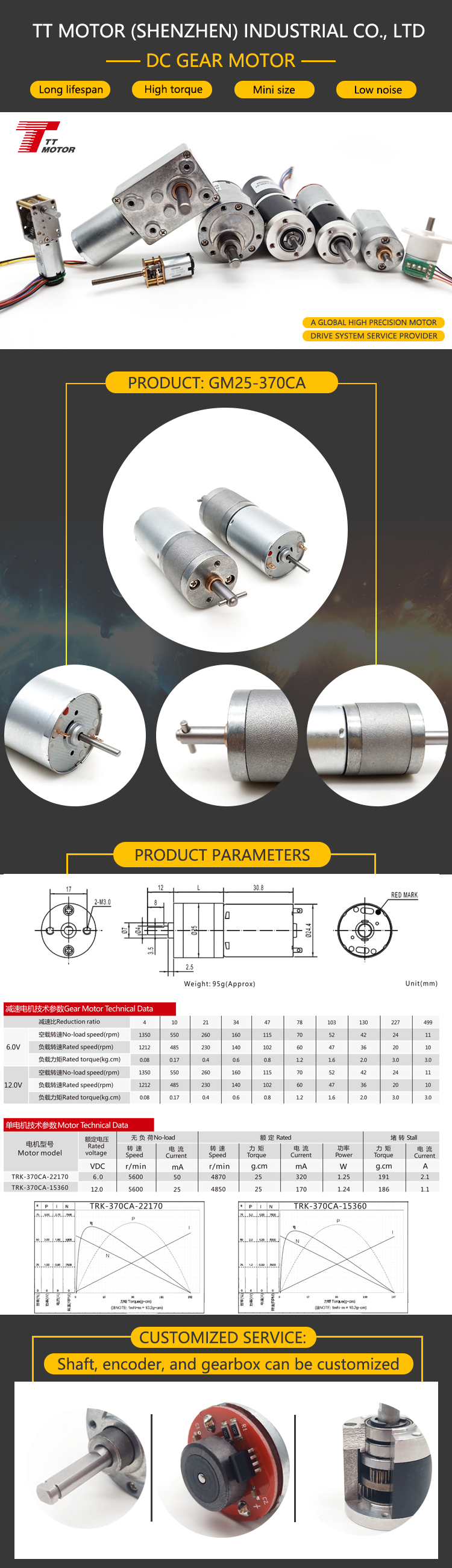

Electric Gear Motor Specifications
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Motor Application Examples
Other Applications
Category Application Fields
Business Machines Vending Machines Printers ATM Copiers and Scanners
Camera and Optical Video Cameras Projectors -
Lawn and Garden Lawn Mowers Snow Blowers Trimmers Leaf Blowers
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
Certification 1 Certification 2 Certification 3 Certification 4
Our Company
We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.
Factory Overview
Our Customers
NIKE, FLEXTRONICS, STANLEY, etc.
Partner Cooperations
Packing & Delivery
Standard packing
Packaging Detail 1 Packaging Detail 2 Packaging Detail 3 Packaging Detail 4
Shipping Lead Time
DHL: 3-5 working days
UPS: 5-7 working days
TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
China Post: Depends on destination country
Sea Cargo: Depends on destination country
Logistics and Transport
Our Customer Feedback
Excellent quality, better price, good service, and on time delivery.
Customer Review 1 Customer Review 2 Customer Review 3 Customer Review 4
Frequently Asked Questions
How to place an order?
Send us an inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
How about sample orders?
Samples are available. Please contact us for details. Sample fees will be charged initially and refunded once you place a formal order.
Which shipping methods are available?
DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight are all available. Other shipping options can also be arranged upon request.
How long does production and shipping take?
Delivery time depends on your order quantity. Production typically takes 15 to 25 working days.
What should I do if my package has missing products?
Please contact our support team, and we will verify your order against the package contents. We apologize for any inconvenience caused.
How to confirm the payment?
We accept payments via T/T and PayPal. Other payment options can also be negotiated. A 30% to 50% deposit is acceptable, with the balance to be settled before shipment.

Related Products
