TeTe Motor
TeTe Motor
| Model: Gear Motor GMP36-555PM | |||
|---|---|---|---|
| TTRS-555PM-1233 | |||
| Rated voltage: 12VDC | Rated speed: 2800r/min | Output power: 5.7W | |
| No-load speed: 3300r/min | Rated torque: 200g.cm | Stall torque: 1150g.cm | |
| No-load current: 200mA | Rated current: 1000mA | Stall current: 5.5A | |
| TTRS-555PM-1260 | |||
| Rated voltage: 12VDC | Rated speed: 5250r/min | Output power: 16W | |
| No-load speed: 6000r/min | Rated torque: 290g.cm | Stall torque: 2200g.cm | |
| No-load current: 300mA | Rated current: 2400mA | Stall current: 15.0A | |
| TTRS-555PM-2440 | |||
| Rated voltage: 24VDC | Rated speed: 3150r/min | Output power: 6.4W | |
| No-load speed: 2400r/min | Rated torque: 200g.cm | Stall torque: 1000g.cm | |
| No-load current: 150mA | Rated current: 700mA | Stall current: 2.7A | |
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 26 | 33.5 | 33.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 750 | 160 | 60 | 32 | 23 | 17 | 12 | 9 | 6 |
| Rated speed rpm | 700 | 150 | 55 | 28 | 20 | 15 | 11 | 8 | 5.5 |
| Rated torque kg.cm | 0.64 | 2.7 | 6 | 12 | 15 | 21 | 26 | 30 | 30 |
| Max.momentary tolerance torque kg.cm | 3.7 | 15 | 35 | 70 | 70 | 70 | 70 | 70 | 70 |
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 26 | 33.5 | 33.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 1400 | 300 | 110 | 55 | 42 | 32 | 23 | 16 | 11.5 |
| Rated speed rpm | 1300 | 275 | 100 | 50 | 38 | 28 | 20 | 15 | 10.5 |
| Rated torque kg.cm | 0.9 | 3.8 | 9 | 18 | 22 | 30 | 30 | 30 | 30 |
| Max.momentary tolerance torque kg.cm | 5 | 20 | 60 | 60 | 60 | 70 | 70 | 70 | 70 |
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 26 | 33.5 | 33.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 980 | 200 | 75 | 38 | 28 | 21 | 15 | 10 | 7.5 |
| Rated speed rpm | 750 | 155 | 60 | 30 | 21 | 16 | 13 | 9.5 | 7 |
| Rated torque kg.cm | 0.64 | 2.7 | 6 | 12 | 15 | 21 | 26 | 30 | 30 |
| Max.momentary tolerance torque kg.cm | 3.2 | 13 | 25 | 50 | 60 | 70 | 70 | 70 | 70 |

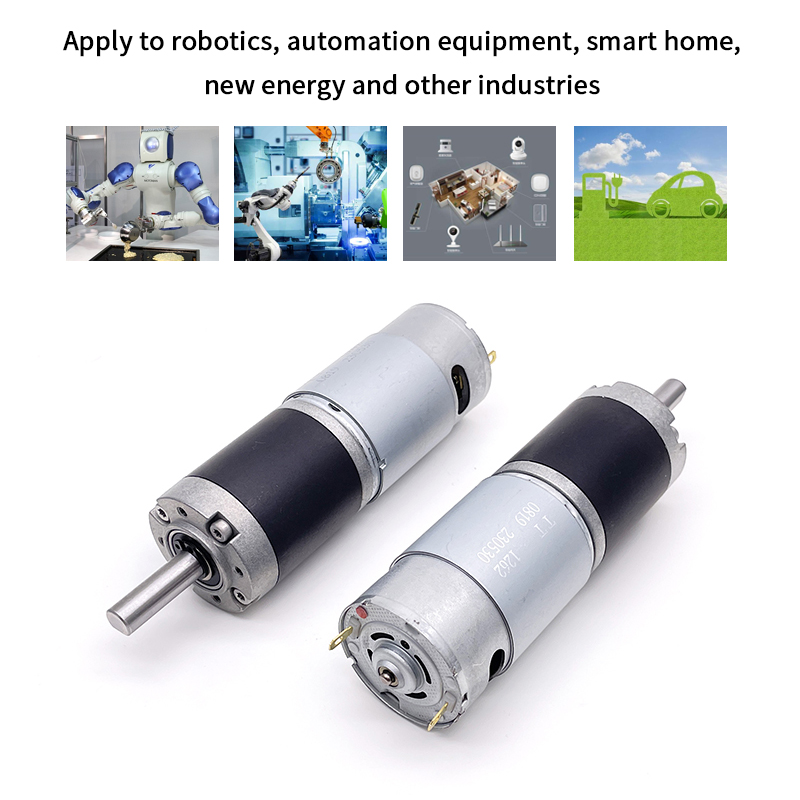

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
| Others application | ||||
|---|---|---|---|---|
| Business Machines | Vending Machines | Printers | ATM | Copiers and Scanners |
| Camera and Optical | Video | Cameras | Projectors | - |
| Lawn and Garden | Lawn Mowers | Snow Blowers | Trimmers | Leaf Blowers |
ISO9001, SGS, National high-tech enterprises, etc.
Specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners. We look forward to being able to work together in the near future.
NIKE, FLEXTRONICS, STANLEY, etc.
Standard packing
Shipping time:
"Excellent quality, better price, good service, and on time delivery."
The typical process involves sending an inquiry, receiving a quotation, negotiating details, confirming the sample, signing the contract/deposit, initiating mass production, preparing the cargo, paying the balance, and completing delivery.
Yes, samples are available. Any sample fees charged will be refunded once a formal order is placed.
Various shipping methods are available, including DHL, UPS, FedEx, TNT, EMS, China Post, and sea freight.
Delivery time depends on the ordered quantity. Mass production usually takes between 15 and 25 working days.
If there is an issue with missing products, the order details will be cross-referenced with the package contents to resolve the discrepancy. We apologize for any inconvenience.
Payments can be made via T/T, PayPal, and other agreed payment methods. A 30% to 50% deposit is standard, with the remaining balance due prior to shipping.
