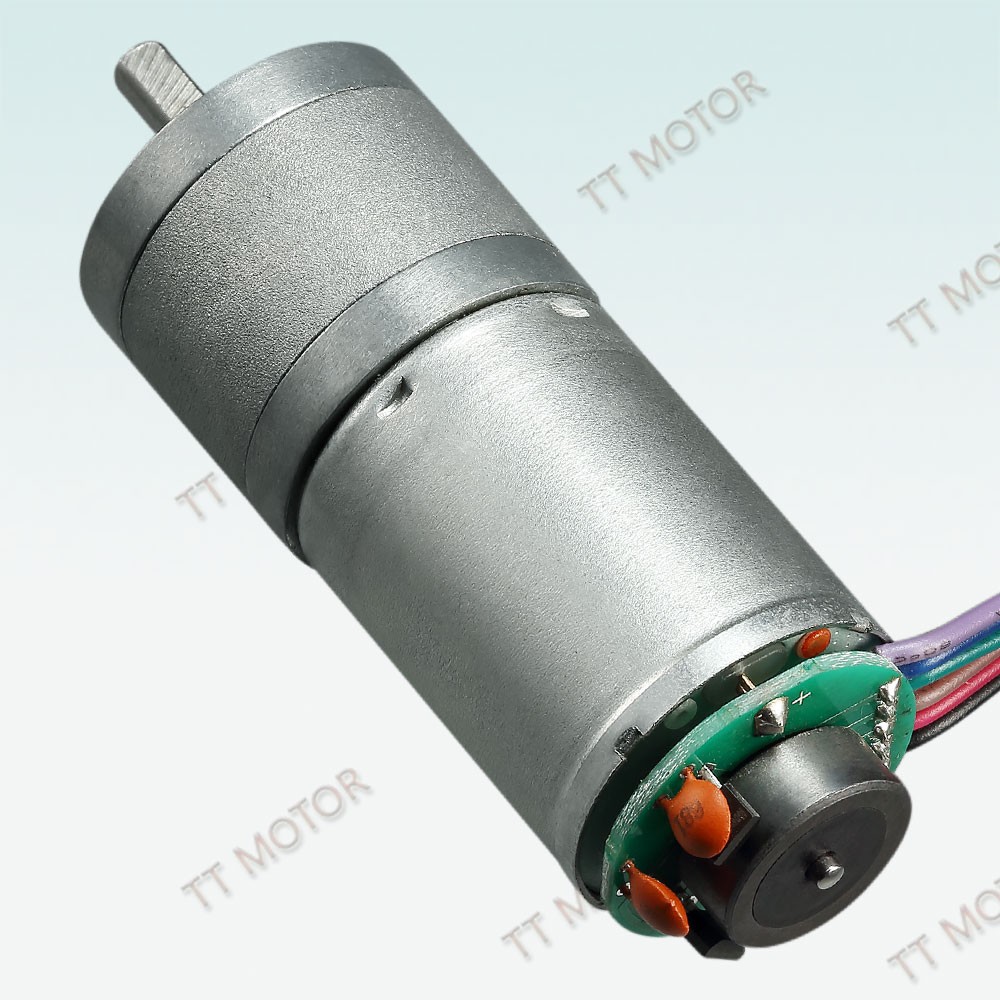

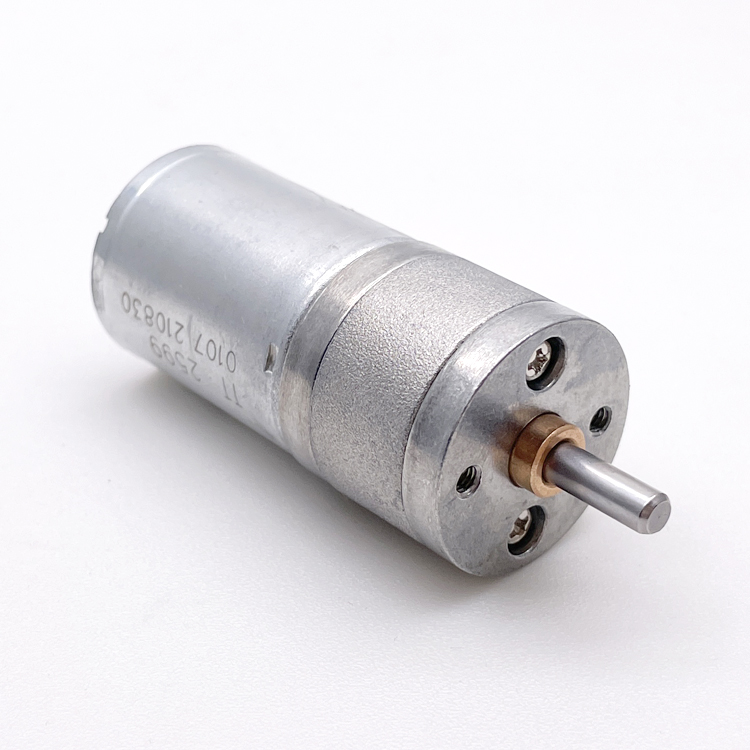

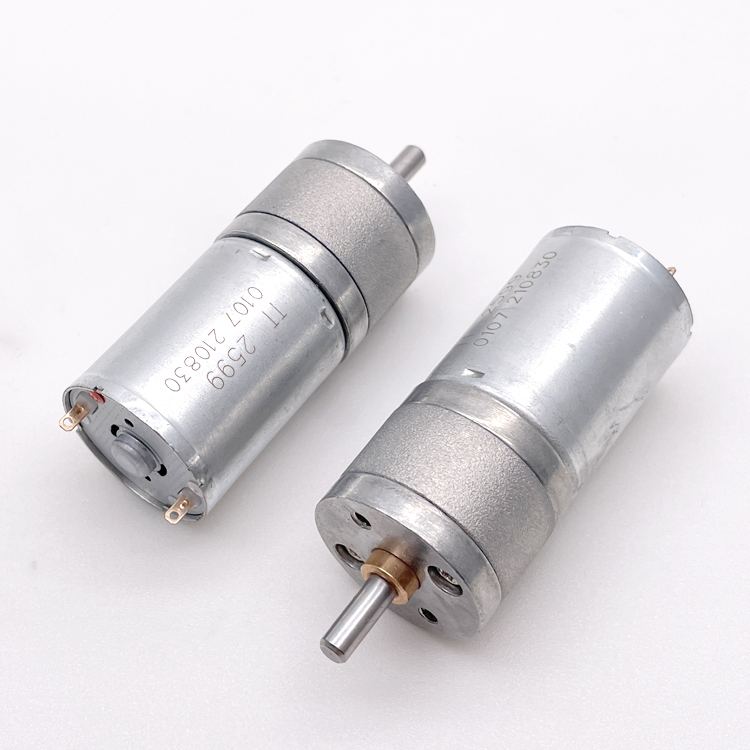

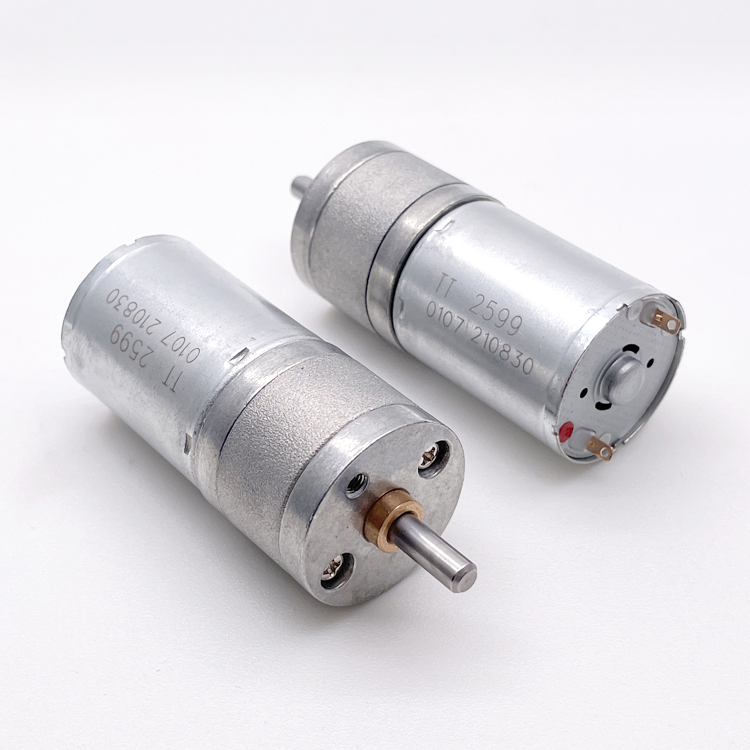

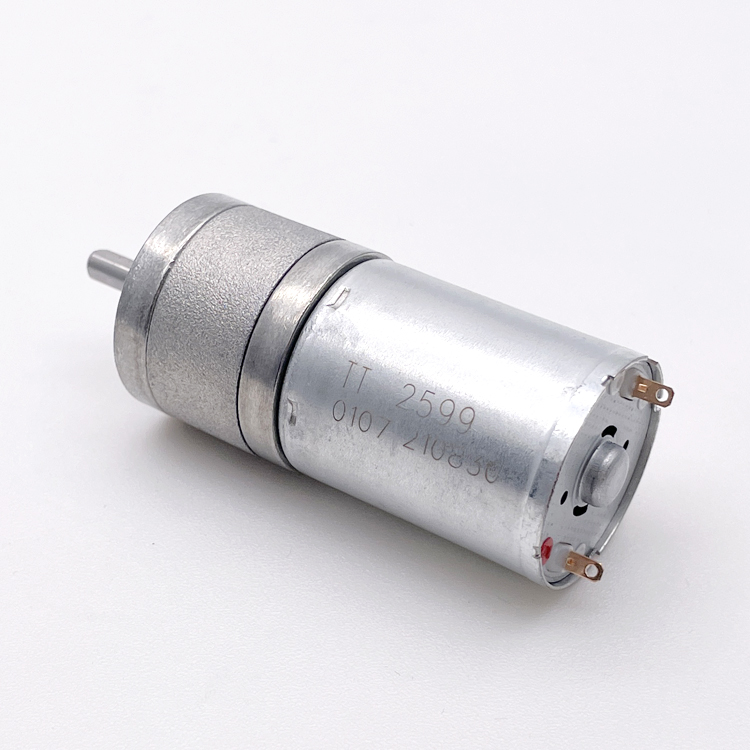

GM25-370CA Electric 12v Encoder Dc Gear Motor for Automatic Toys

1 / 5

GM25-370CA Electric 12v Encoder Dc Gear Motor for Automatic Toys

Send Inquiry

Product Description

GM25-370CA electric 12v encoder dc gear motor for automatic toys

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

Main Features

25mm gearbox plus 370 & 320 permanent magnet DC motor
Small size dc gear motor with low speed and big torque
25mm gear motor provide 0.5Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
DC gear motors can match encoder, 11ppr
Reduction ratio: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499

Model Specifications

Model: Motor GM25-370CA
TRK-370CA-22170	Rated voltage: 6VDC	Rated speed: 4800r/min	Output power: 1.18W
	No-load speed: 5600r/min	Rated torque: 24g.cm	Stall torque: 186g.cm
	No-load current: 50mA	Rated current: 300mA	Stall current: 2.1A
TRK-370CA-15360	Rated voltage: 12VDC	Rated speed: 4800r/min	Output power: 1.18W
	No-load speed: 5600r/min	Rated torque: 24g.cm	Stall torque: 186g.cm
	No-load current: 25mA	Rated current: 160mA	Stall current: 1.06A
TRK-370CA-12560	Rated voltage: 12VDC	Rated speed: 3000r/min	Output power: 0.62W
	No-load speed: 3700r/min	Rated torque: 20g.cm	Stall torque: 125g.cm
	No-load current: 20mA	Rated current: 90mA	Stall current: 0.6A

Performance Details (GM25-370CA-22170-xxx)

Reduction ratio	4	10	21	34	47	78	103	130	227
Length mm	17	19	19	21	21	23	23	25	25
No-load speed rpm	1280	510	245	150	110	68	50	42	24
Rated speed rpm	1200	480	230	137	102	62	47	37	21
Rated torque kg.cm	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7
Max. tolerance torque kg.cm	0.45	1.1	2.3	3.9	5.2	10	10	10	10

Performance Details (GM25-370CA-15360-xxx)

Reduction ratio	4	10	21	34	47	78	103	130	227
Length mm	17	19	19	21	21	23	23	25	25
No-load speed rpm	1280	510	245	150	110	68	50	42	24
Rated speed rpm	1200	480	230	137	102	62	47	37	21
Rated torque kg.cm	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7
Max. tolerance torque kg.cm	0.45	1.1	2.3	3.9	5.2	10	10	10	10

Performance Details (GM25-370CA-12560-xxx)

Reduction ratio	4	10	21	34	47	78	103	130	478
Length mm	17	19	19	21	21	23	23	25	27
No-load speed rpm	850	340	165	100	75	48	34	27	7.5
Rated speed rpm	750	300	145	86	64	38	29	23	6.3
Rated torque kg.cm	0.05	0.12	0.26	0.4	0.6	0.9	1.2	1.4	2.5
Max. tolerance torque kg.cm	0.3	0.75	1.5	2.6	3.5	10	10	10	10

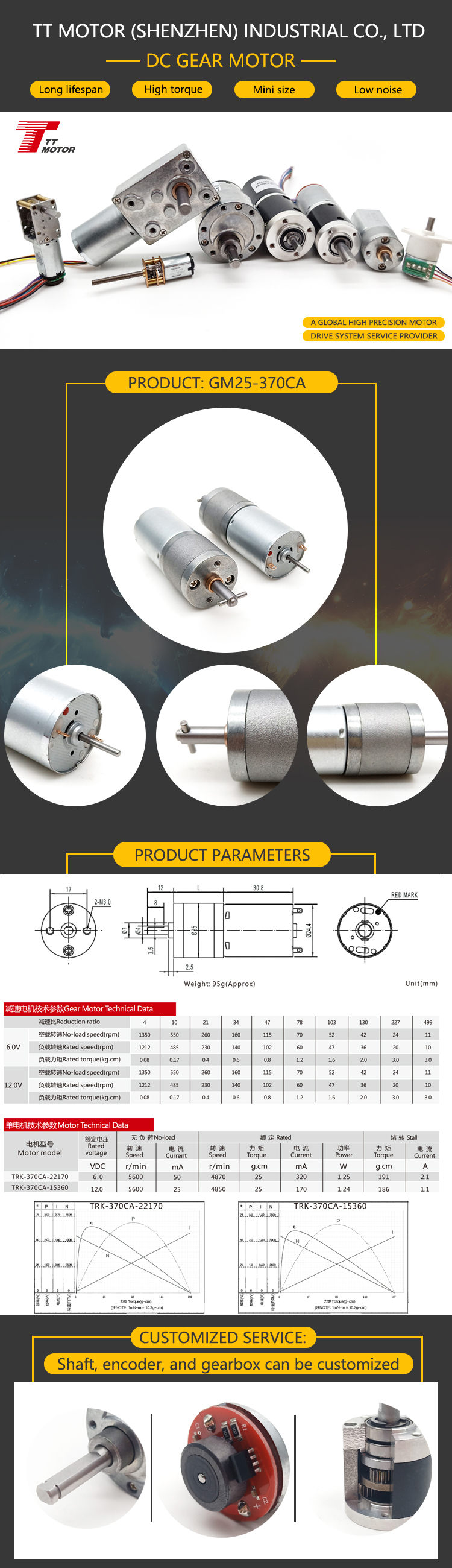

Product Image

GM25-370CA electric 12v encoder dc gear motor

Packaging & Shipping

Model Reference	Case Pack (pcs)	Carton Size	Carton Gross Weight
GM12-N20VA	840	41.5 * 34.5 * 18.5 CM	10.5kg

Typical Application

Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.

Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk.

Camera and Optical:
Video, Cameras, Projectors.

Medical:
Urine Analyzer, Blood Sugar Analyzer, Injector.

Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.

Certifications

Customer Reviews

Our Customers

Manufacturing Profile

We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.

By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.

Frequently Asked Questions

What are the primary applications for the GM25-370CA DC gear motor?

This motor is widely used in automatic door operators, automatic energy saving baths, electrical controlled valves, oxygen machines, optical equipment, cordless power tools, and business machines like ATMs, copiers, and vending machines.

Does this DC gear motor support encoder integration?

Yes, the DC gear motors can be matched with an encoder providing 11ppr (pulses per revolution) feedback for precise speed and position control.

What voltage options are available for the GM25-370CA?

We offer configurations rated for 6VDC and 12VDC, with different models tailored for optimal output speeds and torque requirements.

What range of reduction ratios do you provide for this 25mm gearbox?

We offer a wide array of reduction ratios including 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, and 499 to suit different low-speed and high-torque demands.

What is the maximum torque capability of this gear motor?

The 25mm gear motor provides a rated torque of up to 0.5Nm and can tolerate a maximum momentary tolerance torque of up to 10 kg.cm depending on the configured reduction ratio.

Can this motor be used in noise-sensitive applications?

Yes, this small-diameter dc gear motor is specifically optimized for low noise and stable performance, making it ideal for medical equipment, business automation, and optical devices.
