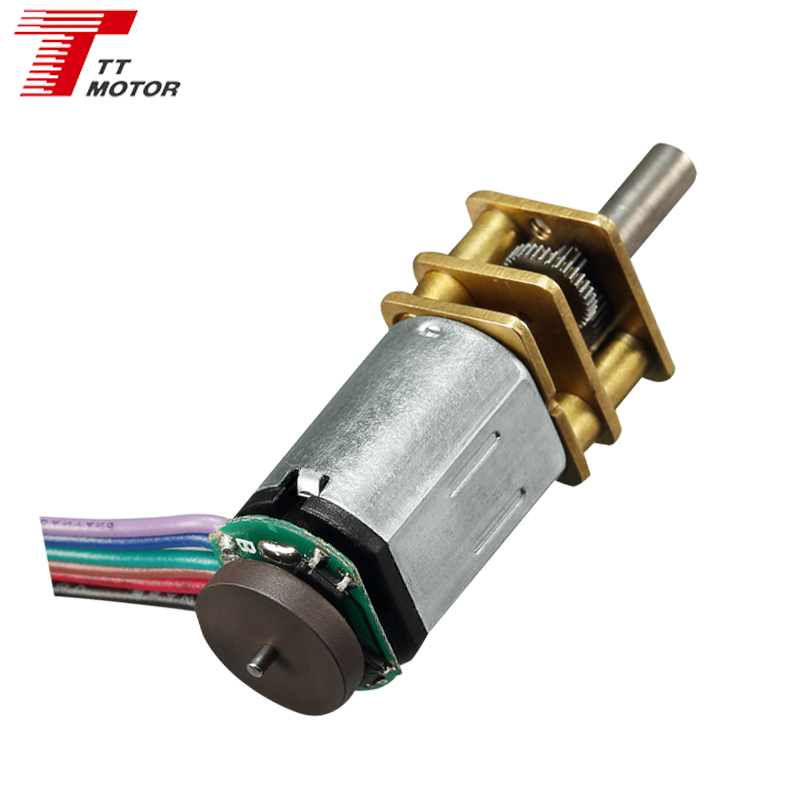

GM12-N20VA DC 6v Mini Metal N20 Gear Motor With Encoder

1 / 5

GM12-N20VA DC 6v Mini Metal N20 Gear Motor With Encoder

Send Inquiry

Product Description

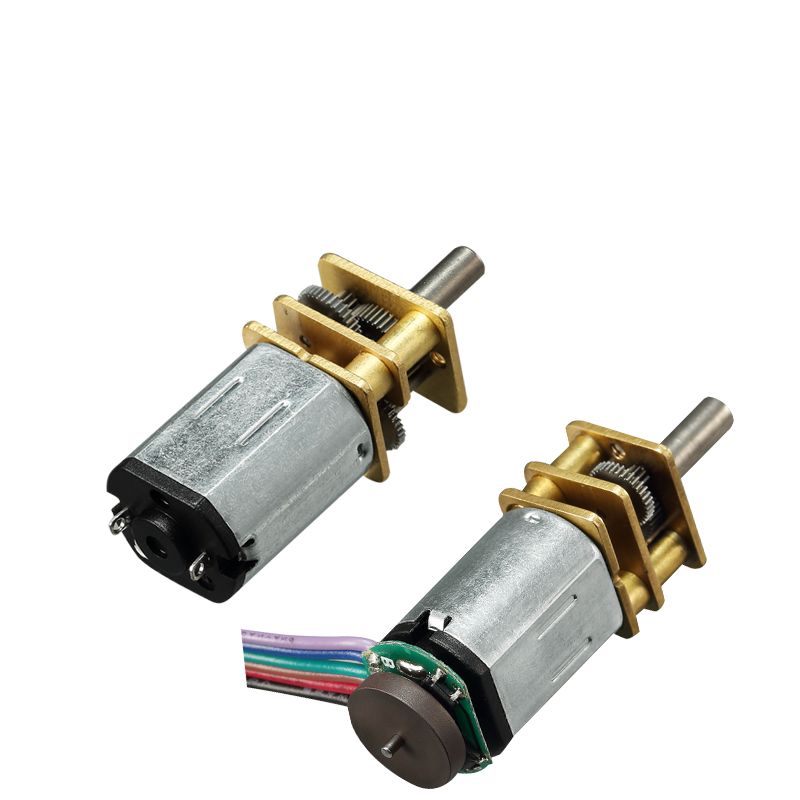

GM12-N20VA DC 6v mini metal N20 gear motor with encoder

⚙️ Main Features

12*10 mm gearbox plus N20 & N30 permanent magnet dc motor
Small size dc gear motor with low speed and big torque
12mm gear motor provide 0.1Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motors can match encoder, 3ppr
Reduction ratio: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000

📊 Motor Model Specifications

Model	Rated Voltage	No-load Performance	Rated Performance	Stall Performance	Output Power
TFF-N20VA-13110	2.4V DC	Speed: 14800 r/min Current: 60mA	Speed: 12000 r/min Torque: 2.5g.cm Current: 200mA	Torque: 13g.cm Current: 1.20A	0.31W


TFF-N20VA-09220	5V DC	Speed: 14800 r/min Current: 30mA	Speed: 12000 r/min Torque: 2.5g.cm Current: 120mA	Torque: 13g.cm Current: 0.52A	0.31W


TFF-N20VA-05430	12V DC	Speed: 16000 r/min Current: 15mA	Speed: 12500 r/min Torque: 3.0g.cm Current: 60mA	Torque: 13g.cm Current: 0.25A	0.35W

⚙️ GM12-N20VA-13110-xxx Gearbox Options

Reduction ratio	10	30	50	100	150	210	250	298	380
Length (mm)	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed (rpm)	1450	470	285	145	96	69	58	50	38
Rated speed (rpm)	1200	400	240	120	80	57	48	40	31
Rated torque (kg.cm)	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max tolerance torque (kg.cm)	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

⚙️ GM12-N20VA-09220-xxx Gearbox Options

Reduction ratio	10	30	50	100	150	210	250	298	380
Length (mm)	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed (rpm)	1450	470	285	145	96	69	58	50	38
Rated speed (rpm)	1200	400	240	120	80	57	48	40	31
Rated torque (kg.cm)	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max tolerance torque (kg.cm)	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

⚙️ GM12-N20VA-05430-xxx Gearbox Options

Reduction ratio	10	30	50	100	150	210	250	298	380
Length (mm)	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed (rpm)	1550	530	310	160	110	78	60	55	43
Rated speed (rpm)	1100	400	250	125	83	60	50	42	33
Rated torque (kg.cm)	0.02	0.05	0.08	0.18	0.27	0.37	0.45	0.5	0.5
Max tolerance torque (kg.cm)	0.1	0.2	0.4	0.8	1.1	1.5	1.6	1.9	2.5

💡 Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

📦 Other Applications

Business Machines	Camera and Optical	Lawn and Garden
Vending Machines Printers ATM Copiers and Scanners	Video Cameras Projectors	Lawn Mowers Snow Blowers Trimmers Leaf Blowers

📜 Certifications

ISO9001, SGS, National high-tech enterprises, etc.

🏢 Production Facility

We have been specializing in micro motors, gear motors, and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, tools, and many others. Our products are dependable and long-lasting, backed by years of experience. We export 98% of our output worldwide. By leveraging a hard-won reputation for honesty, dependability, and quality, we aim to continue as a pioneer in sales overseas by seeking global partners.

👥 Our Customers

NIKE, FLEXTRONICS, STANLEY, etc.

📦 Packing & Delivery

Standard packing

✈️ Shipping Times

🚀

DHL

3-5 working days

📦

UPS / TNT

5-7 working days

✈️

FedEx

7-9 working days

📮

EMS

12-15 working days

China Post: Depends on target country.
Sea Freight: Depends on target country.

💬 Customer Feedback

"Excellent quality, better price, good service, and on-time delivery."

❓ FAQ

🔹 Q: How to order?

A: Send us an inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

🔹 Q: How about sample orders?

A: Samples are available for evaluation. The sample fee charged is refundable once a formal bulk order is placed.

🔹 Q: Which shipping methods are available?

A: DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight are all standard shipping options. Other methods can be arranged upon request.

🔹 Q: How long does production and shipping take?

A: Delivery and production time depends heavily on the ordered volume. Typically, the production cycle takes 15 to 25 working days.

🔹 Q: What should I do if my package has missing products?

A: Please contact our support team. We will immediately verify the shipment records and package contents to resolve the issue.

🔹 Q: How can the payment be confirmed?

A: We accept payment via T/T and PayPal. Other payment options can also be negotiated. A standard 30-50% deposit is required upfront, with the remaining balance to be cleared before shipping.
